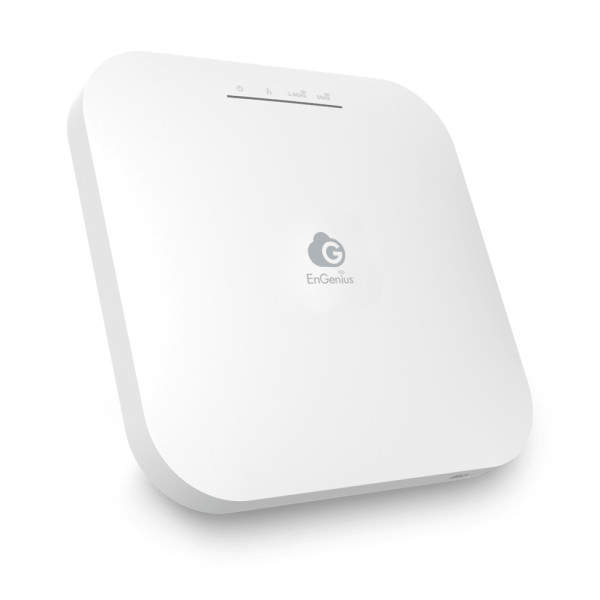

The EnGenius ECW230 Wi-Fi 6 access point delivers high-capacity 4x4 wireless performance, 2.5 Gigabit connectivity, and cloud-managed networking for demanding business environments.Built for High-Density Connectivity
The ECW230 combines enterprise-grade Wi-Fi 6 performance, increased capacity, and centralized cloud management, making it ideal for education, hospitality, healthcare, enterprise offices, and high-traffic commercial IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
IEEE 802.3 u/abProcessor Qualcomm Quad-Core ARM Cortex A53s @ 2.0GHz CPUAntenna 4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
Integrated Omni-Directional AntennaScanning Radio N/ABLE N/APhysical Interface 1 x 2.5GE Port (PoE+)
1 x DC Jack
1 x Reset ButtonLED Indicators 1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHzPower Source Power-over-Ethernet: 802.3at Input
12VDC /2AMaximum Power Consumption 19.5WWireless & Radio
Operating Frequency Dual-Radio Concurrent 2.4 GHz & 5 GHzOperation Modes AP, MeshFrequency Radio 2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHzTransmit Power Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)Radio Chains/Spatial Stream 4×4:4SU-MIMO Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio.MU-MIMO Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) Multiple (MU)-MIMO for up to 1,148 Mbps wireless data rate to transmit to two streams MUMIMO 11ax capable wireless client devices under 2.4GHz simultaneously.Supported Data Rates (Mbps) 802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS31)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)Supported Radio Technologies 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)Channelization 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDUSupported Modulation 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCKDFS Certification FCC/CE/ICAirGuard (WIPS/WIDS) N/AZero-wait DFS N/ADedicated Scanning Radio N/AMax Concurrent Users 512 Per radioClient Balancing YesAuto Channel Selection YesManagement
Multiple BSSID 8 SSIDs for both 2.4GHz and 5GHz radios.VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLANSpanning Tree Supports 802.1d Spanning Tree ProtocolQoS (Quality of Service) Compliance With IEEE 802.11e Standard
WMMSNMP v1, v2c, v3MIB I/II, Private MIBFast Roaming 802.11r/kWireless Security WPA2-PSK
WPA2-Enterprise
WPA3-PSK
WPA3-Enterprise
Hide SSID in Beacons
Wireless STA (Client) Connected List
Client Isolation
Client Access ControlInterface IPv4, IPv6Local Web Access Supports HTTP or HTTPSEnvironmental & Physical
Temperature Range Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)Humidity (non-condensing) Operating: 90% or less
Storage: 90% or lessDevice Dimensions & Weights
ECW230 Device Weight: 1.31 lbs. (597 g)
Length: 8.27″ (210 mm)
Width: 8.27″ (210 mm)
Height: 1.31″ (33.2 mm)Packaging Weight: 1.96 lbs. (891 g)
Length: 9.65″ (245 mm)
Width: 9.65″ (245 mm)
Height: 3.35″ (85 mm)Package Contents 1 x ECW230 Cloud Managed Indoor Access Point
1 x Ceiling Mount Base (9/16” Trail)
1 x Ceiling Mount Base (15/16” Trail)
1 x Ceiling and Wall Mount Screw Kits
1 x Product CardWarranty 5 yearsCertifications CE
FCC
IC
