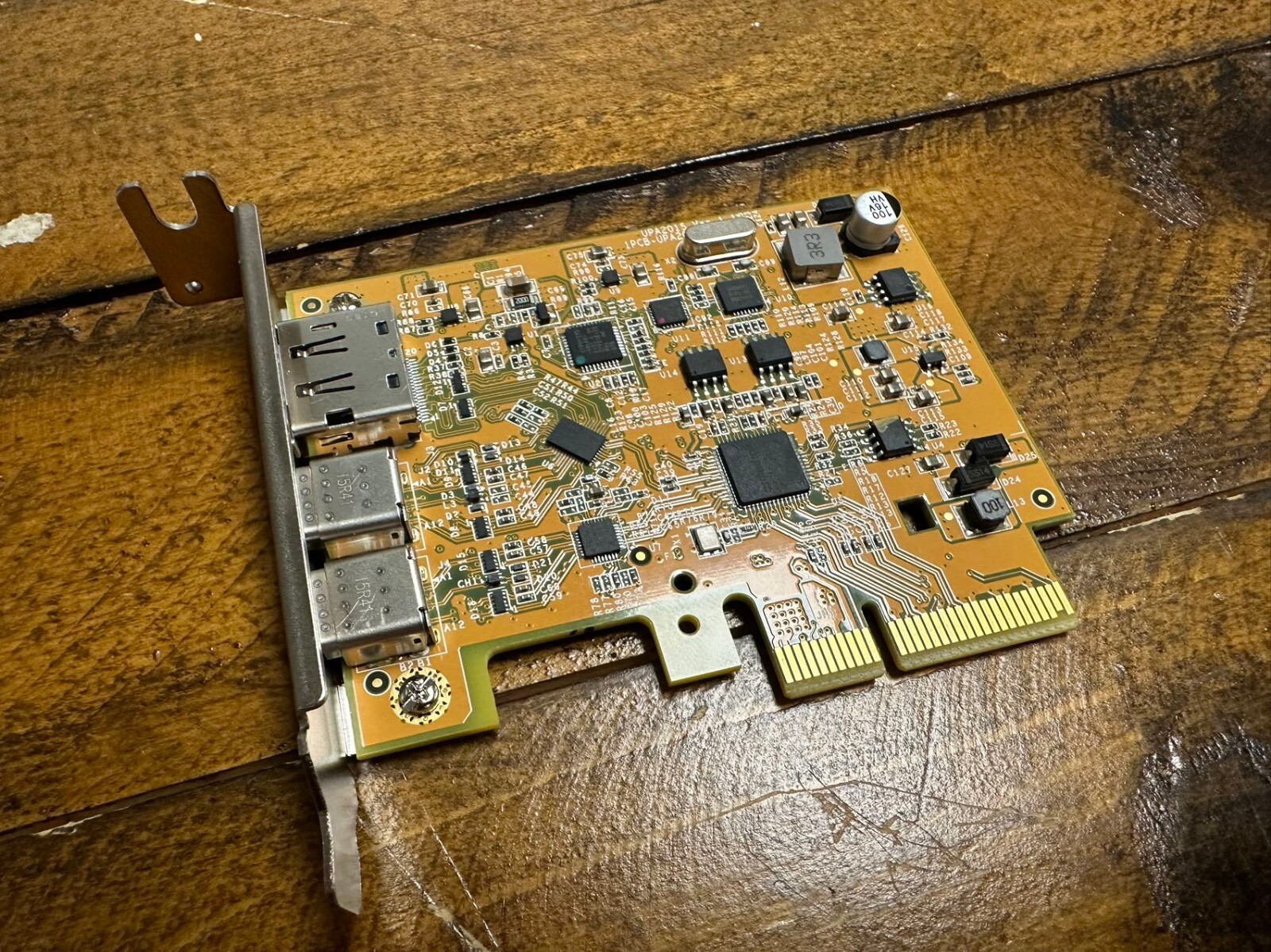

HardwareBUS PCI Express Spec 3.0x2, (compliant with x4/x8/x16 slot)Controller PCI Express USB 3.2 Gen2 Host controller, Asmedia ASM3142USB Standard eXtensible Host Controller Interface (xHCI) Rev1.1IRQ & IO Assigned by SystemUSB CommunicationInterface Universal Serial Bus 3.2 Gen2 / Gen1 / 2.0 / 1.1Speed SuperSpeed+(10Gbps), SuperSpeed(5Gbps), High Speed (480Mbps), Full Speed (12Mbps), Low Speed (1.5Mbps)No. of Port 2-portPCB Connector USB 3.1 USB Type-C port (Downstream Facing Port)Protection ±15KV IEC61000-4-2 Air Gap Discharge±8KV IEC61000-4-2 Contact DischargeVideo / AudioInput Interface Standard DisplayPort Female, DisplayPort Ver1.4/1.2Output Interface USB Type-C portAudio Yes (audio pass-through)PowerSource PCI Express Bus PowerOutput Capacity USB Type-C Port:Power Delivery +5VDC / 1.5A / each portNote: Total power output capacity will be limited by system power supply.Over Current Protection USB Type-C Port:+5VDC / 1.5A / each port / Power SwitchPower Consumption 3.0W @ 3.3V (board only without power output to USB device)Driver SupportWindows Windows 8.x / 10 (X86/X64) / 11 (Windows in-box driver)EnvironmentOperation Temperature 0 to 60°C (32 to 140°F)Operation Humidity 5 to 95% RHStorage Temperature -20 to 70°C (-4 to 158°F)Regulatory ApprovalsEMC CE, FCC, VCCI, BSMIGreen RoHS, CRoHS, WEEEPhysical CharacteristicsPCB Dimension 85.30x 55.75 mmBracket Standard 120 mm (Low Profile 80mm)Bracket Space 1
On Jun 5, 2024 at 16:58:07 PDT, seller added the following information:
