Product Description

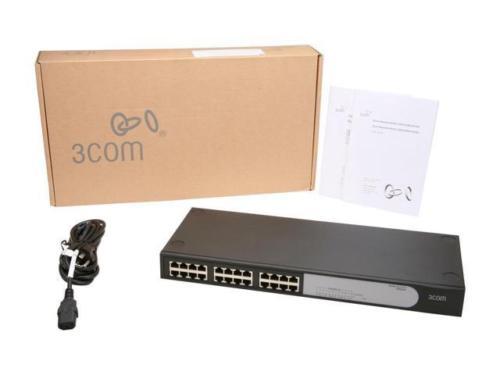

3Com Baseline Switch 2824 24 Port Model 3CBLUG24A / HP V1405-24G JD022A#ABA Switch
- Mfr Part Number: 3CBLUG24A-US
- 3COM Model No. 3CBLUG24A
- Baseline Switch 2824 24 PORT
NEW 3COM BASELINE 2824 3CBLUG24A / HP V1405-24G JD022A#ABA SwitchThe HP V1405-24G (JD022A) Switch was formerly sold as the 3Com Baseline Switch 2824 (3CBLUG24A)
Details:
Ports 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Physical characteristics Dimensions 6.8(d) x 17.4(w) x 1.7(h) in. (17.27 x 44.2 x 4.32 cm) (1U height) Weight 4.0 lb. (1.81 kg)
Memory and processor 512 KB
Mounting Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included) Performance 100 Mb Latency < 5 µs 1000 Mb Latency < 5 µs Throughput 6.6 million pps Routing/Switching capacity 48 Gbps MAC address table size 8192 entries
Environment Operating temperature 32°F to 104°F (0°C to 40°C) Operating relative humidity 10% to 90%, non-condensing Non-operating/Storage temperature -40°F to 158°F (-40°C to 70°C) Non-operating/Storage relative humidity 10% to 95%, non-condensing
Electrical characteristics Maximum heat dissipation 68 BTU/hr (71.74 kJ/hr) Voltage 100-240 VAC Current 1.0 A Maximum power rating 20 W Frequency 50 / 60 Hz Notes Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety UL 60950; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1-03
Notes The HP V1405-24G (JD022A) Switch was formerly sold as the 3Com Baseline Switch 2824 (3CBLUG24A) and may ship with this product labeling. This switch complies with the following emission standards: FCC part 15 Class A; VCCI Class A; CISPR 22 Class A; EN 55024; EN 55022 1998 Class A; EN 61000-3-2 2000, 61000-3-3; and ICES-003 Class A.
