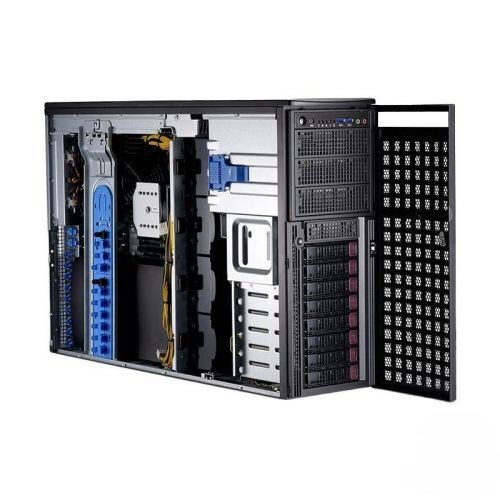

Supermicro SYS-7049GP-TRT Tower Workstation Server Support 4GPU /Support or CTO/:
$1876.98

Product Description

Thank you for your attention!

The default is the configuration in the list. If you need to change the configuration, we support customization needs, you can let us know what you need and we will give you a best price.

We use DHL or UPS to ship servers and can reduce the amount of duty declared. If you have any questions, please contact us, thank you.

We always pay attention to product quality, any item will be strictly teste.

Product Details

Brand:

supermicro

Structure

Tower

model:

SYS-7049GP-TRT

Product situation:

Used

Hard disk backplane:

8*3.5”

HDD:

None

Hard drive bays:

Radiator:

YES

Cooling fan:

YES

Processor:

None

Memory

None

RAID Controller:

None

Network card:

Motherboard comes with its own network card

Rack rails

None

PSU:

1800W X1

Note: The appearance of the chassis may have wear and scratches. The photos on the link are inventory photos, not actual photos. Please carefully browse the details for the actual configuration

Product SKUsSYS-7049GP-TRT

SuperServer 7049GP-TRT (Black)

Motherboard
Super X11DPG-QTProcessor/CacheCPU

Dual Socket P (LGA 3647)
2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
3 UPI up to 10.4GT/s
Support CPU TDP 70-205W

Cores

Up to 28 Cores

Note‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)GPU Support

Please refer to:Compatible GPU list

System MemoryMemory Capacity

16 DIMM slots
Up to 4TB 3DS ECC class=\"desc\" style=\"box-sizing: border-box; list-style: none; font-weight: normal; padding-left: 0px; padding-right: 10px; word-break: break-word; color: #222222 !important;\">Supports Intel® Optane™ DCPMM††

Memory Type

††Cascade Lake only. Contact your Supermicro sales rep for more info.On-Board DevicesChipset
- Intel® C621 chipset
SATA
- SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
- Intel® X550 Dual Port 10GBase-T
- Virtual Machine Device Queues reduce I/O overhead
- Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
- ASPEED AST2500 BMC
Input / OutputSATA
- 10 SATA3 (6Gbps) ports
LAN
- 2 RJ45 10GBase-T ports
- 1 RJ45 Dedicated IPMI LAN port
USB
- 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A)
- 4 USB 2.0 ports (2 rear, 2 via headers)
Video
- 1 VGA port
Audio
- 7.1 HD Jacks
Serial Port/Header
- 2 COM ports (1 rear, 1 Header)
System BIOSBIOS Type
- AMI 32Mb SPI Flash ROM
ManagementSoftware
- Intel® Node Manager
- IPMI 2.0
- SSM,SPM,SUM
- SuperDoctor® 5
PC Health MonitoringCPU
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
FAN
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
ChassisForm Factor
- 4U Rackmountable / Tower
- Optional Rackmount Kit
Model
- 18.2\" (462mm)
Width
- 7.0\" (178mm)
Depth
- 26.5\" (673mm)
Package
- 27\" (H) x 13\" (W) x 38\" (D)
Weight
- Net Weight: 46 lbs (20.9 kg)
- Gross Weight: 62 lbs (28.1 kg)
Available Colors
- Dark Gray
Front PanelButtons
- Power On/Off button
- System Reset button
LEDs
- Power status LED
- Hard drive activity LED
- Network activity LEDs
- System Overheat & Power Fail LED
Ports
- 2 Front USB 3.0 Ports
Expansion SlotsPCI-Express
- 4 PCI-E 3.0 x16 (double-width) slots
- 2 PCI-E 3.0 x16 (single-width) slots
- 1 PCI-E 3.0 x4 (in x8 slot)
Drive Bays / StorageHot-swap
- 8 Hot-swap 3.5\" drive bays
- Optional 4x 2.5\" NVMe supported
M.2
- 1 NVMe based M.2 SSD
- Form Factors: 2280, 22110
System CoolingFans
- 4 Heavy duty fans
- 2 Rear exhaust fans
- 2 Optional Rear fans (required for Passive GPUs)
Heatsink
- 2 Active heatsink with optimal fan speed control
Power Supply2200W Redundant Power Supplies with PMBusTotal Output Power and Input
- 1200W with Input 100-127Vac
- 1800W with Input 200-220Vac
- 1980W with Input 220-230Vac
- 2090W with Input 230-240Vac
- 2200W with Input 220-240Vac (for UL/cUL use only)
- 2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
- (W x H x L)
  - 76 x 40 x 336 mm
  +12V
  - Max: 100A / Min: 0A (100-127Vac)
  - Max: 150A / Min: 0A (200-220Vac)
  - Max: 165A / Min: 0A (220-230Vac)
  - Max: 174.17A / Min: 0A (230-240Vac)
  - Max: 183.3A / Min: 0A (220-240Vac)
  5VSB
  - Max: 1A / Min: 0A
  Output Type
  - Backplanes (gold finger)
  Certification Titanium Level
  [Test Report]Operating EnvironmentRoHS
  - RoHS Compliant
  Environmental Spec.
  - Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  - Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  - Operating Relative Humidity:
    8% to 90% (non-condensing)
  - Non-operating Relative Humidity:
    5% to 95% (non-condensing)
  - Contact Us
  - We care about our valued buyers, if you have any questions, our Customer Service staffs will be very glad to help you.
    We try our best to reply to your emails as soon as possible, however, due to high volume of daily incoming emails and time zone difference,we may not be able to reply your emails immediately. Please allow 24 business hours for us to resp.
  - Customer Service Hours: Monday to Friday: 9:00AM - 18:00PM(GMT+8).
